SLIDE TANDEM rear pull-out
SLIDE-TANDEM-64
The boxes come to you – not you into the boot.
Rear pull-out for vans and MPVs: two stacks of Euro containers one behind the other on a 1200 mm full-extension slide, with a drawer below. Only 102 mm high, fixed without drilling into the vehicle.
Digital item – instant download after purchase. Prices and purchase on Etsy only.
Will it fit?
The key dimensions
- Length × width × height
- 1200 × 400 × 102 mm
- Extension
- 1200 mm full extension, up to 100 kg, locks in both end positions
- Containers
- 2 stacks of 60 × 40 one behind the other, any height
- Vehicle
- developed for VW® Multivan T7 from 2021, long overhang – not with a 7th seat
- Fixing
- M8 T-slot nuts in the floor rails, no drilling into the vehicle
- Weight
- approx. 19 kg with table cut-out, approx. 22 kg without
- Material guide price
- approx. €250 for the module with fixings, without containers (as of 10/2026)
Edge strips fit Bauhaus® 60 × 40 Euro containers – for other brands, measure the container base and the calculator gives the strip width. VW® and Bauhaus® are named descriptively only, no affiliation. Fitting and load securing at your own risk. More on compatibility
What it is

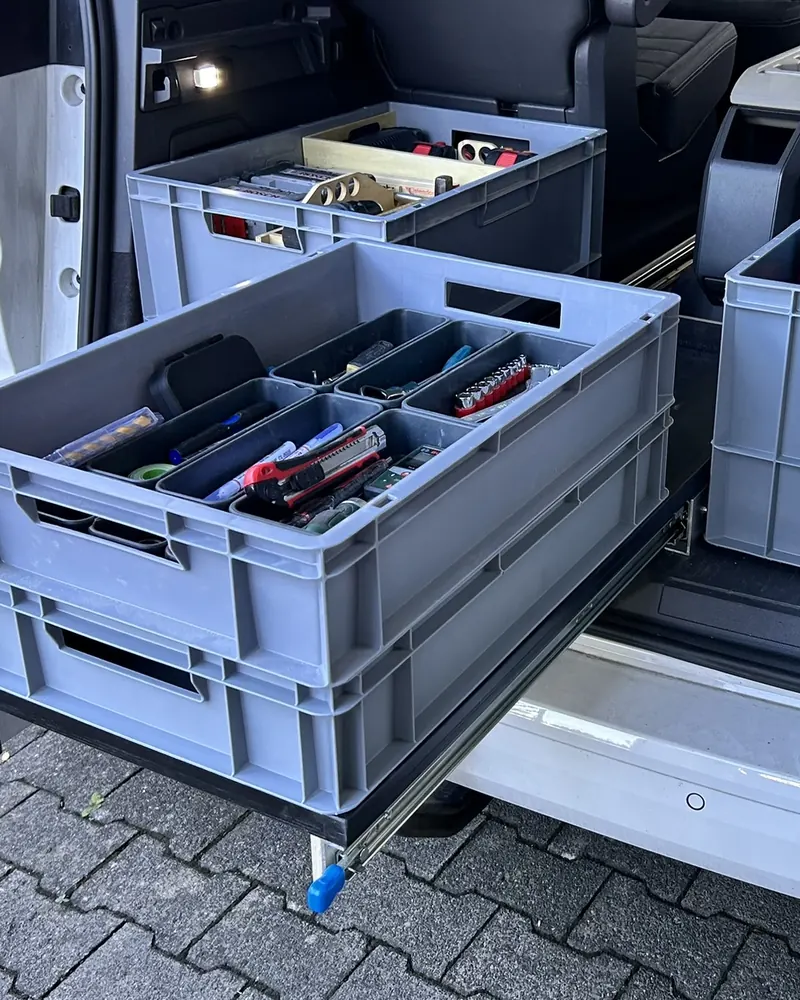

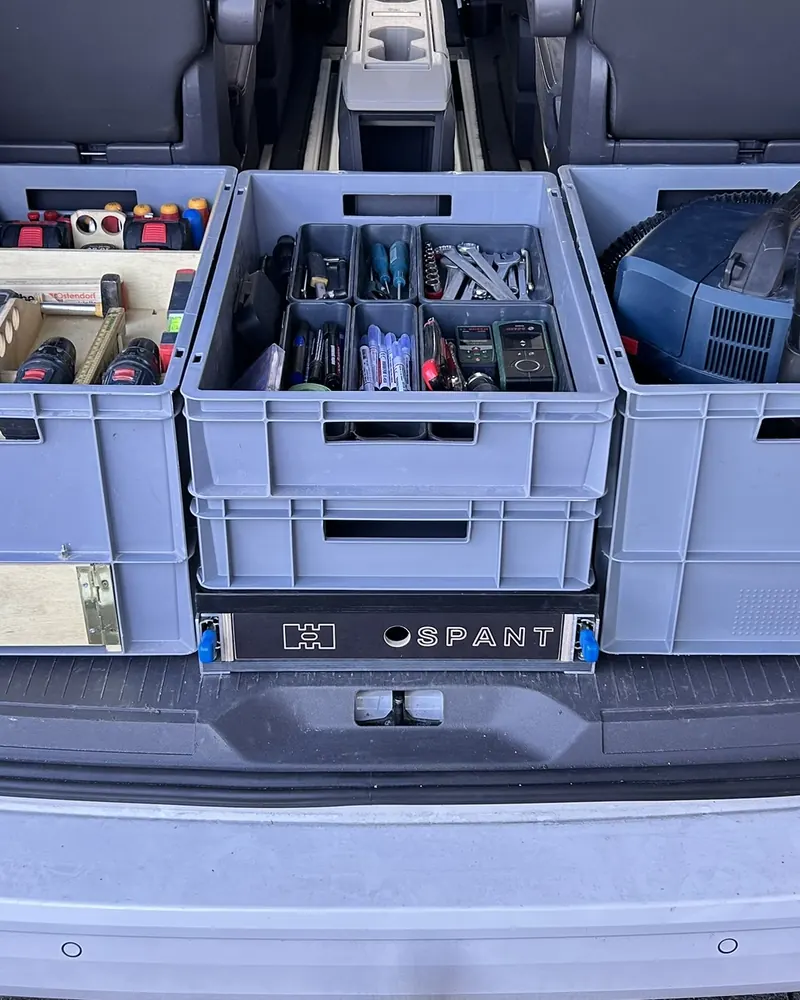

Two stacks of 60 × 40 Euro containers ride on a heavy-duty full-extension slide and come right out of the tailgate – you reach every box without climbing into the boot. Underneath sits a drawer for tools and small parts. The slide locks in both end positions.

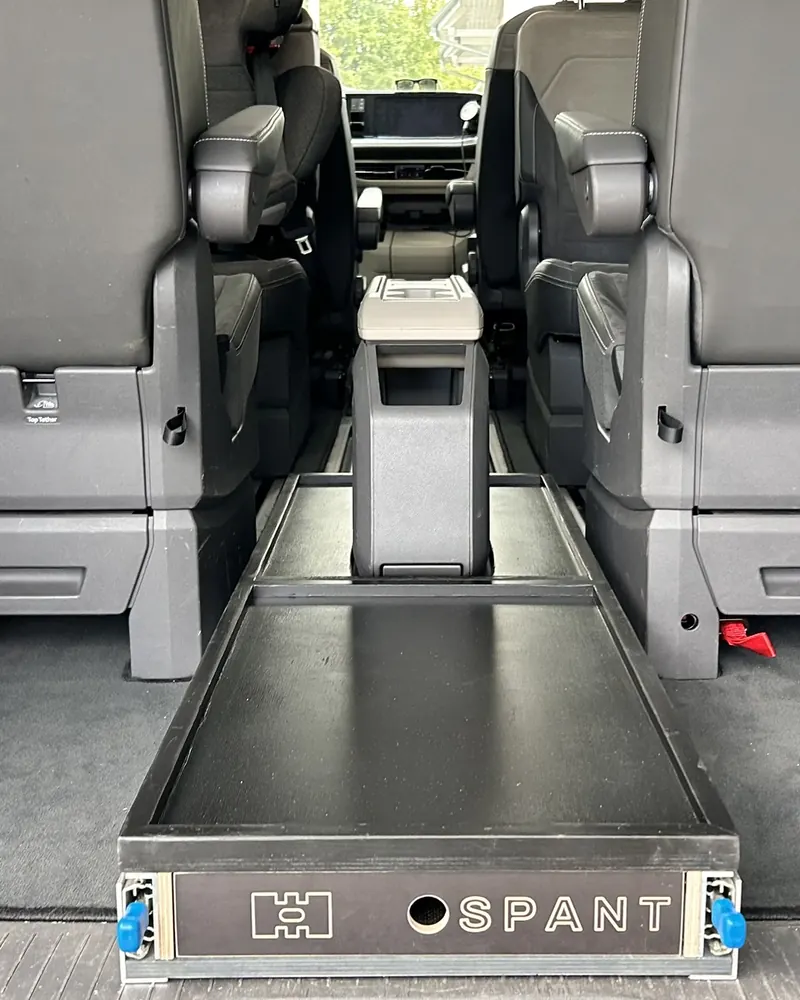

Without containers the module is only 102 mm high and takes up hardly any space. It is fixed with T-slot nuts in the existing floor rails – no drilling into the vehicle. It is built from 12 mm plywood, strips from the DIY store and aluminium angles ordered cut to length.
Developed for the VW® Multivan T7 from 2021 with long overhang. Other vehicles with a flat load floor work with small changes and your own fixing. The edge strips fit Bauhaus® Euro containers – for other brands the calculator gives the matching strip width.

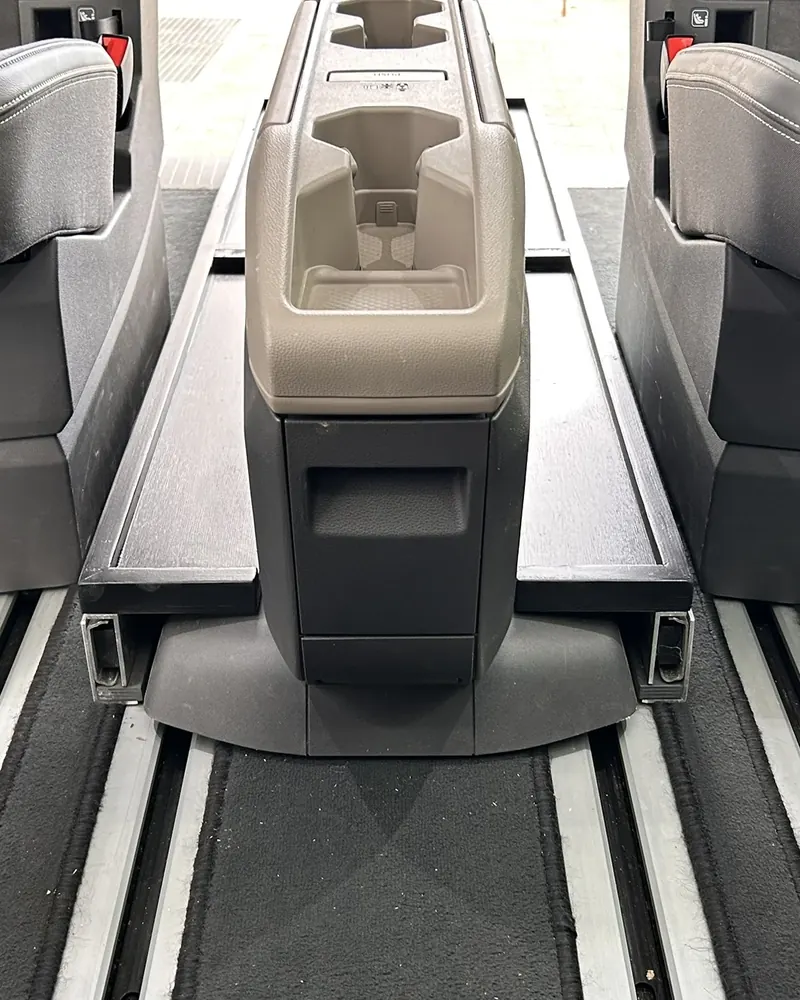

With table cut-out, 1 drawer – the multi-function table stays usable
SLIDE-TANDEM-64-1x2mft
Without cut-out, 2 drawers – one to the tailgate, one to the front
SLIDE-TANDEM-64-1x2

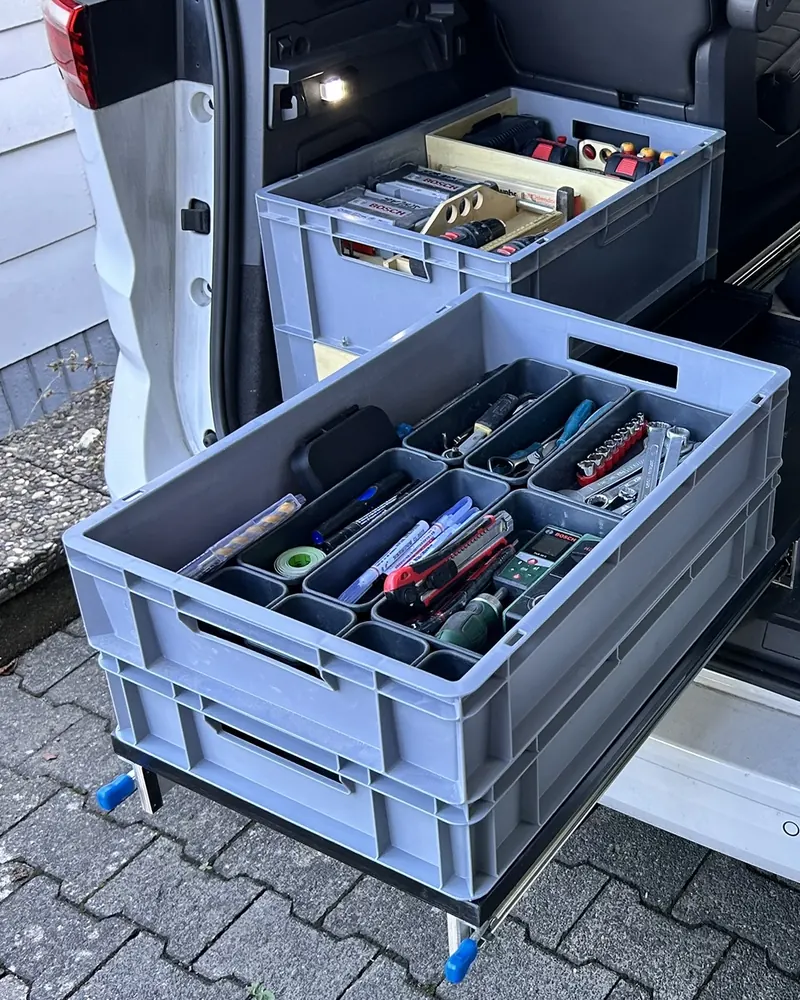

- Full extension 1200 mm – up to 100 kg, locking

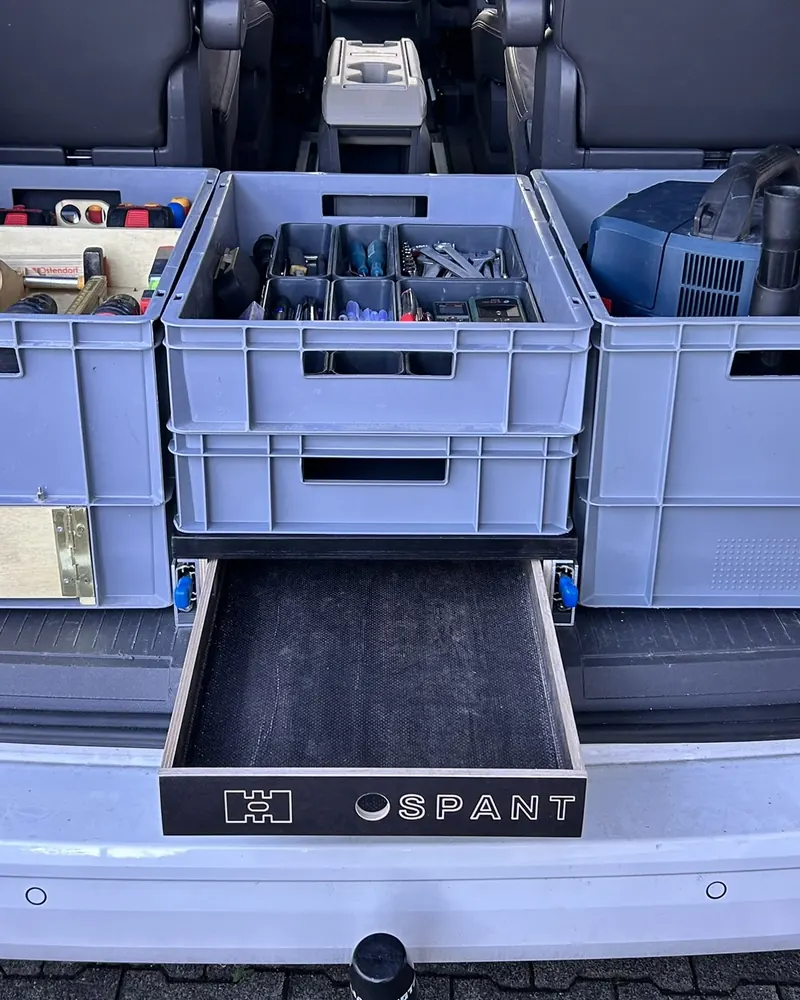

- Drawer below the boxes for tools and small parts

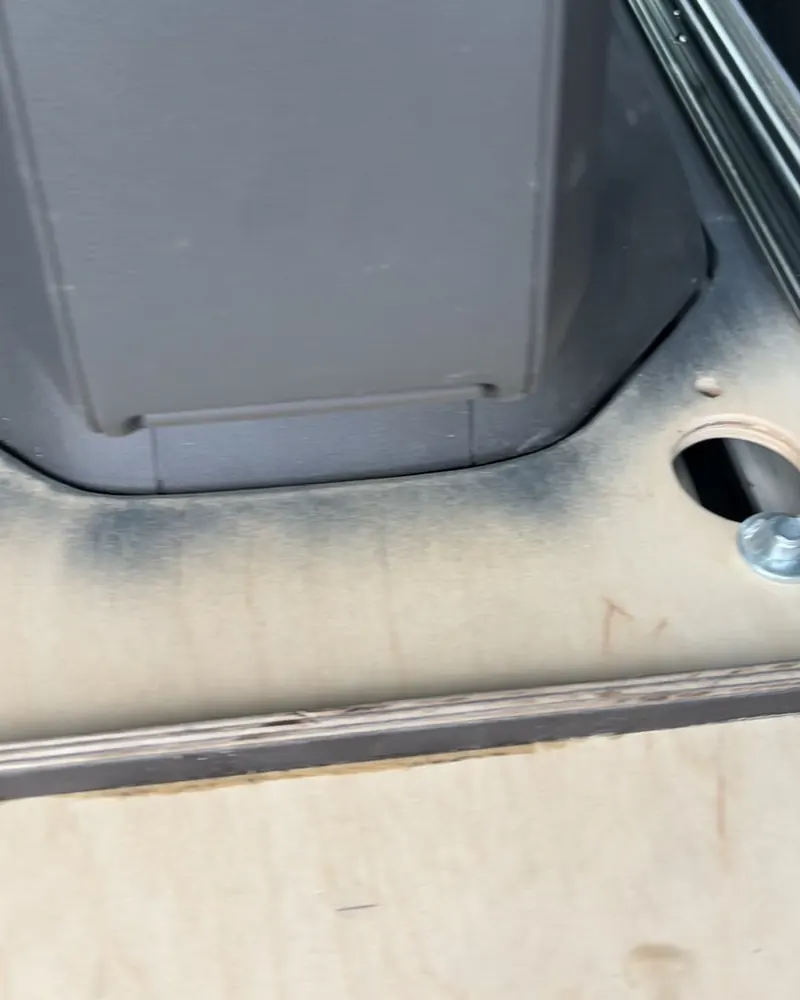

- Fixed without drilling – T-slot nuts in the floor rails
- Calculator: edge strips to suit your containers, parts list and cost
Pictures
What it looks like
What you get
- Building instructions PDF, 25 pages, A4 landscape, DE/EN – 12 build steps with drawings
- Calculator (Excel/LibreOffice): edge strips to suit your containers, parts list, shopping and cost
- Shopping list with guide prices, cutting list and drilling plans for the aluminium angles
What you need
- Cordless drill, metal and wood drill bits, countersink, jigsaw
- Mitre saw or mitre box, clamps – no special tools
- 1 to 2 days, one person
Who is it for?
For vans, MPVs and campers – for anyone carrying tools, camping gear or shopping who is done climbing into the boot.
